Single Wall Chimney Systems
It is a system that is built inside the building, adjacent to the building or free in the open air for the discharge of waste gases into the open air and meets the conditions in accordance with the rules of construction technique. (TS 11386) At the same time, thanks to the draft it creates, it delivers the air required for combustion to the furnace and boiler. In terms of high combustion efficiency, low heating costs and protection of environmental health, the construction and connections of chimneys are important.
Chimney; in general, it is the name given to the channel system that delivers gases that may be dangerous to human health to the atmosphere in the most reliable way.
The chimney must be resistant to high temperature and fire, chemical effects of gases resulting from combustion, corrosion and water vapor.
Single-walled chimneys are used in systems where there is no high heat output in the heated area and sudden cooling is not possible. These products can be manufactured from 304,316,430, black sheet, galvanized steels according to their burner types.
AISI 316-L quality stainless steel should definitely be used in natural gas burner devices in our country.
Single-walled products include top-down hats, roof transition badges, rain skirts, flat modules, clamps, wall fasteners, T module, Control cover, condensation container, coffee table and smoke channel if there is a bracket in the smoke channel as a system.

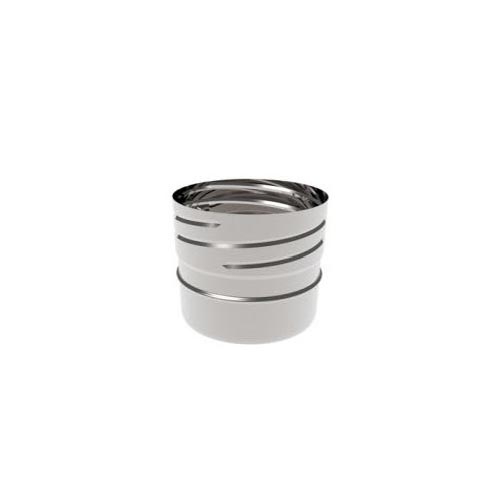

Below are some images of our products.
|PART NAME||MANUFACTURING DIAMETER||MEAT THICKNESS||INNER CIDAR||OUTER CIDAR|
|Flat Module||Ø80-Ø1200||0,40-1,00mm||316-L ve 304||304-430-A1.Gofraj|
|Elbow 90°||Ø80-Ø1200||0,40-1,00mm||316-L ve 304||304-430-A1.Gofraj|
|Control Cover||Ø80-Ø1200||0,40-1,00mm||316-L ve 304||304-430-A1.Gofraj|
|Wall Support||Ø80-Ø1200||0,40-1,00mm||316-L ve 304||304-430-A1.Gofraj|
|Wall Clamp||Ø80-Ø1200||0,40-1,00mm||316-L ve 304||304-430-A1.Gofraj|
|Elbow 15° - 30° - 90°||Ø80-Ø1200||0,40-1,00mm||316-L ve 304||304-430-A1.Gofraj|
|Clamp||Ø80-Ø1200||0,40-1,00mm||316-L ve 304||304-430-A1.Gofraj|
|Condensation Container||Ø80-Ø1200||0,40-1,00mm||316-L ve 304||304-430-A1.Gofraj|
|Chinese Hat||Ø80-Ø1200||0,40-1,00mm||316-L ve 304||304-430-A1.Gofraj|
|Lodos Hat||Ø80-Ø1200||0,40-1,00mm||316-L ve 304||304-430-A1.Gofraj|
|Jet-Cap Hat||Ø80-Ø1200||0,40-1,00mm||316-L ve 304||304-430-A1.Gofraj|
|Konus Hat||Ø80-Ø1200||0,40-1,00mm||316-L ve 304||304-430-A1.Gofraj|
